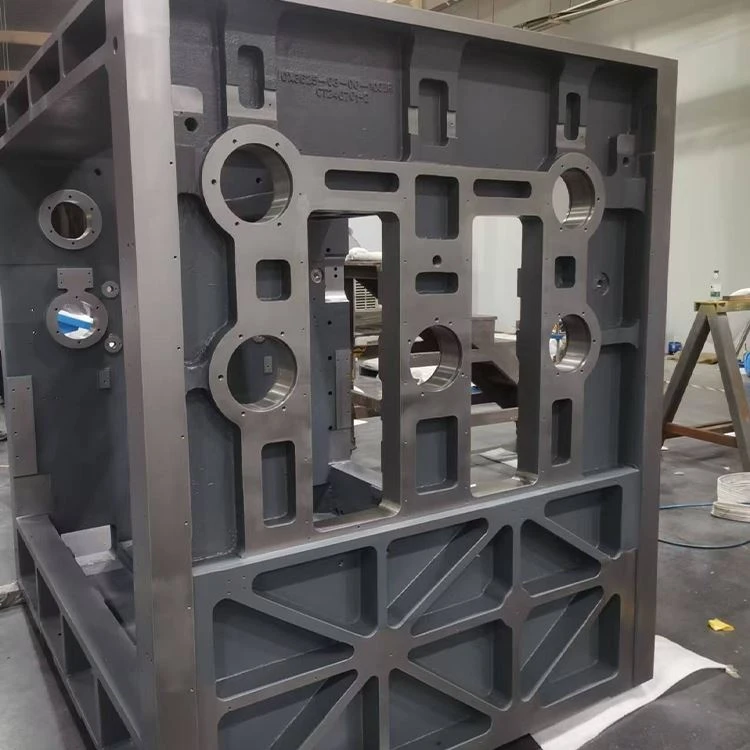

Grey Cast Iron Parts Roller Frame

Grey Cast Iron Parts Roller Frame
1. Material：CASTING IRON ,QT500-7
2. Application: Machinery, tool monitoring systems, equipment monitoring systems, industrial control products, and other related items.
3. Machining Processing : Machining + Electrophoresis surface treatment.
4. Max Dimension (mm): ( L x W X H) = 3000 mm × 2500 mm × 3400 mm (including cantilever)
5. Tolerence： The tolerance is limited to 0.02 cm unless specifically requested by the customer
6 : WEIGHT: 1000kg - 10000 kg

Send Inquiry

Chat Now

Product Introduction

Grey Cast Iron Parts Roller Frame VS. CNC Machining Service

The CX3625 multi-wire cutting equipment is primarily used for straight sheet cutting of metal materials, including grey cast iron parts. Its five-roller design allows for both slicing and squaring functions, making it ideal for precision cutting applications. The equipment offers the advantages of high efficiency and low cost. The self-developed special diamond wire, with a wire diameter ranging from φ0.25mm to φ0.35mm, features large diamond grains on the surface and provides strong cutting power, especially for materials like grey cast iron, ensuring high-quality results.

Details	Material	HT250
	Processing Technology	Inspect the incoming materials and check the machining allowance. Perform rough machining on 6 surfaces, leaving an allowance of 2mm. Conduct heat treatment to relieve stress. Perform finishing. Carry out bench treatment. Measure the full size using a three-coordinate measurement.
	Weight	7288KG
	Technical Parameters	Roller specifications: (Φ140 ± 10) mm × 1580 mm × 5 (upper 2, lower 3 – five axes). Worktable translation stroke: 40 mm. Cutting feed speed: 0.1 – 99.9 mm/min. Maximum round-trip wire speed: 1200 m/min. Number of round-trip cycles: 9 cycles/min. Diameter of diamond wire: Φ0.10 – Φ0.35 mm. Wire reel storage capacity: 20 km (Φ0.35 diamond wire). Power supply: Total power: 77 kVA.
	Target Customer Groups	Diamond wire cutting machines are widely used for cutting various metal and non-metal composite materials, such as ceramics, glass, rocks, gems, jade, meteorites, single-crystal silicon, silicon carbide, polycrystalline silicon, refractory bricks, epoxy boards, ferrites, PCBs, as well as building materials, dental materials, and biological and bionic composite materials. They are particularly suitable for cutting brittle crystals that are high in hardness, high in value, and prone to breaking.
	Processing Time	112H
